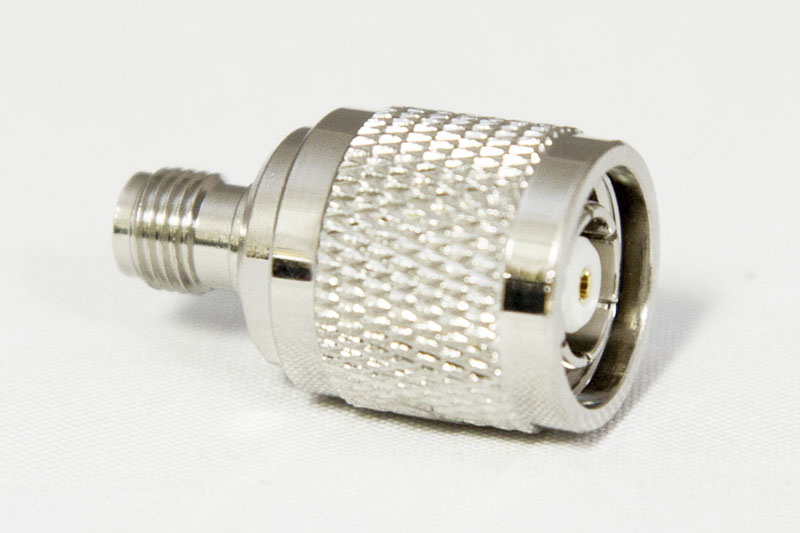

RPSMA JACK TO RPTNC PLUG ADAPTER
Short Description:
The AccelTex inline RF connector adapter converts an existing style or gender connector to easily mate with another style or gender. These adapters are built to minimize insertion loss and are an easy and efficient way to change styles and genders within an RF system.
Part Number: ATS-RPSMAJ-RPTNCP
-
Product Details and Features
- Model: ATS-RPSMAJ-RPTNCP
- Quantity: 105
- Manufactured By:
- Frequency Range: DC – 5.85 GHz
- VSWR: ≤ 1.25
- Impedance: 50 ohms
- Operating Temperature: -67 to 311 deg.F (-55 to 155 deg.C)
- Connector 1 Style: RPSMA Jack
- Connector 2 Style: RPTNC Plug
- Dielectric Withstand: 1000 V RMS
- Center Conductor Contact Resistance: <= 10 milliohms
- Outer Conductor Contact Resistance: <= 2.5 milliohms
- Insulation Resistance: >= 5000 megaohms
- Insertion Loss: <= 0.2dB
- Standard: IEC 60169-15 and IEC 60169-17
- Adapter Shape: Straight
- Mating: SMA: 1/4-36UNS-2A and TNC: 7/16-28UNEF-2B
- Durability:≥ 500 Cycles
- Body: Nickel Plated Brass
- Insulator: Teflon
- Contact Pin: Gold Plated Bronze
-
Specification Sheet
View, Download or Print detailed product specifications.
Cable Assembly Outline Drawing
View, Download or Print lightning arrestor outline drawing.
-
Warranty Information
AccelTex Solutions lightning and surge suppression products are covered by a 1-year Limited Warranty.
